low investment high profit facial tissue paper folding machine for small paper plant
Description of facial tissue paper folding machine:
Facial tissue machine is used to fold tissue roll, which has been slit by jumbo roll slitting machine, into inter-fold tissue paper. After being packed,the final paper product is soft bag or hard box package facial tissue, which can be taken out one by one when used.
Production Parameter
| Technical data of facial tissue paper folding machine | |
| Machine Model | GM-2L |
| Product Size(mm) | 200x200±2mm (Other size are available) |
| Parent roll Diameter(mm) | φ1100mm(Other size are available) |
| Parent roll Core Inner Diameter | 76.2mm (Other size are available) |
| Speed | 0~100m/min |
| Controller | Frequency Converter Control, Electromagnetic speed regulation |
| Embossing Device | Steel to steel embossing |
| Embossing Bottom Roller | Felt roller, wool roller ,rubber roller , steel roller |
| Edge embossing Device | Steel to steel , independent regulator |
| Cutting system | Pneumatic point cut/ full-cut |
| Vacuum System | 7.5kw |
| Pneumatic System | 3 air compressor ,at least the pressure 5kg/cm2Pa, provided by customer |
| Power of main part | 3kw |
| Dimensions | 5150x1300x1920mm |
| Weight | The actual weight is depending on the model and configuration |
| Optional choice |
Embossing Device, embossing roller, cutting system |

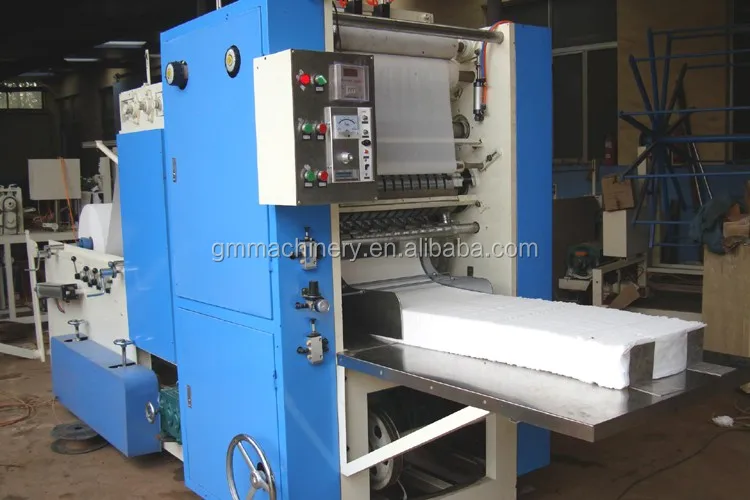

Production Display
Production Brief Introduction
Features of facial tissue paper folding machine:
- 1. GM-2Ltype box facial tissue paper machine has an effective roller surface width of 560mm, which is 140mm wider than ordinary 2L type machine. It can simultaneously produce 4 rows of standard soft package facial tissue paper, which greatly improves the machine output.
- 2. This machine adopts vacuum adsorption and automatic counting. It has the advantages of fast speed and accurate quantity. It is an advanced equipment for the production of boxed facial tissues.
- 3. The equipment is equipped with three tension adjustment devices to ensure the dimensional accuracy of the folded paper product.
- 4. The machine comes with two kinds of embossing functions: Edge embossing and full pattern embossing,which can meet the various production needs of customers.
Finished Product
Our Company
Zhengzhou guangmao machinery manufacturing Co.Ltd, located in Zhengzhou city, china, a leading professional paper machine manufacturer in china, which specializes in pulp making machine paper making machine and paper processing machine manufacturing. We have full set of production models line such as 787, 1092, 1575, 1760, 1800, 2100, 2640,3200, 4400, 5200. There are two branch factories, total areas is 96,000. With more than 30 years experience. We can manufacture various pulping machine paper making machine, paper processing machine with best quality and perfect service. Our company pursues high standard manufacturing and perfect product. Our product have audited of ISO9001:2008 and exported many countries, such as Afghanistan, Algeria, USA, Bangladesh, Brazil, Bhutan, Myanmar, Egypt, Ethiopia, Fiji, Ghana, Mexico, Nigeria, Uganda, Kazakhstan, Kenya, Sudan, Uzbekistan, Thailand, Kyrgyzstan and El Salvador and other countries and regions. Our company has perfect service system. Our company has a engineer team with rich practice experience, who can supply perfect service during the whole deal,including technology consultation design factory, project evaluation; detailed design of factory installation and testing the whole production line; training engineers and works;Meanwhile, we also supply spare parts for long time and manufacture machine in accordance with consumers special requirements. we have pre-sale, on-sale, after-sale service so that we can pay attention to the process and your needs to solve your questions at any time.We hope to establish friendship and business relationship with friends from all over the world.
Our Service
Packing & Shipping
Packing
products will packaged according to their shapes, weight, transport distance and transport modes. large machines will be packaged in sections. every part of export machinery will be in standard export package-seaworthy wooden case, waterproof film, straw rope, carton box etc., which will ensure the intactness of products.
Delivery
products will be transported according to their features and clients's needs. air, train and sea transportation are all available.
Brief introduction to Zhengzhou Guangmao Machinery Co. Ltd. (OEM):
Founded in 1982, Zhengzhou Guangmao Machinery Co. Ltd. is a professional paper machinery manufacturer that specialized in manufacturing and exporting paper machine over the past 30 years.
Our products are all ISO9001:2000 and CE qualified, and have been exported to more than 30 countries. Our high quality products and perfect service have won customers' praise and more and more orders.
Business scope:
Various pulp making machines;
Various paper making machines;
Various paper processing machines;
Various spare parts.
Company scale:
Two branch factories;
One International Trade Department;
Total area is 96,000 square meters.
Technology strength:
One professional technician team of 116 engineers and 12 experts;
32 years rich practice experience.
One innovation research team, always follow the advanced technology of Finland, Denmark and Italy;
Skilled and careful workers.
Our market:
our machines sells well in more than 30 countries and regions, such as Russia, Indonesia, Uzbekistan, Tajikstan, Nigeria, Uganda, Pakistan, Egypt, Bhutan, Fiji, Brazil, Paraguay, Syria, Libya, Turkey, Canada etc. High quality and perfect service have reserved customers' praise and more orders.
Q: How to get a quotation?
A: You can send inquiry or chat with our sales manager by trade manager (by click the button at the right side of this page).
Q: How to visit your company?
A:Our company is located in Zhengzhou City, Henan Province. From Beijing to our city, it will take 1.5 hours by flight or 3 hours by high speed train; From Shanghai to our city, it will take 2 hours by flight or 5 hours by high speed train; From Guangzhou to our city, it will take 2.5 hours by flight or 6 hours by high speed train.
After you confirm visiting plan, please inform us, and we will arrange picking up and also booking hotel for you.
Q: Why we choose you?
A:1. 36 years experience focusing on paper making machinery!
2. Turn-key project solution, lifelong technical service!
3. 2 factory branches and 1 international trading office welcome you all the time!
4. Design and manufacture paper machinery according to your specific requirements
Q: I want to start a small business, what is the minimum order quantity?
A: The MOQ is 1set.
Q: How to make payment?
A:(1) 30%T/T within 10 days after signing contract;
(2) 70% T/T before shipment;
(3) 100% L/C is also acceptable
Q: How about delivery?
A:All the machinery will be packed with standard export package. The delivery time will be 30-45 days after confirming order, and detailed delivery date should be decided according to production season and order quantity.
